Vision × Time Series

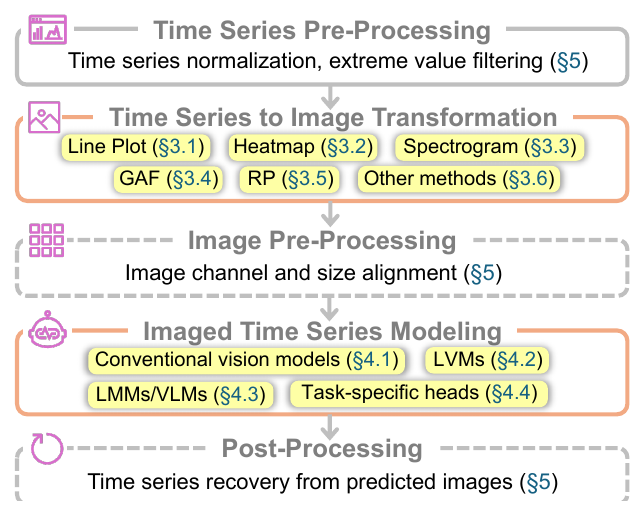

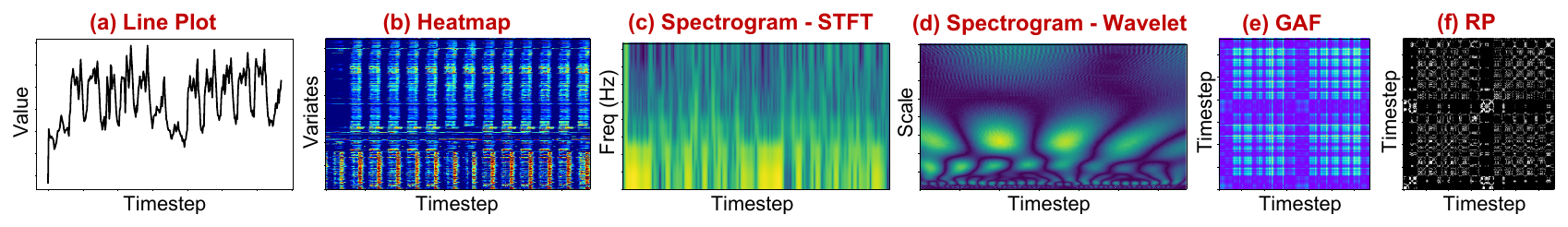

Line Plot a straightforward way for visualizing a univariate series for human analysis (e.g., stocks, power consumption). The simplest approach is to draw a 2D image with the x-axis representing time steps and the y-axis representing time-wise values, with a line connecting all values of the series over time. This image can be either three-channel (i.e., RGB) or single-channel as the colors may not be informative; ForCNN even uses a single 8-bit integer to represent each pixel for black-white images. So far, there is no consensus on whether other graphical components, such as legend, grids and tick labels, could provide extra benefits in any task. For example, ViTST finds these components are superfluous in a classification task, while TAMA finds grid-like auxiliary lines help enhance anomaly detection.

Heatmap visualizes the magnitudes of the values in a matrix using color. It has been used to represent the matrix of a multivariate series as a one-channel variate-by-time image; TimEHR extends this to irregular multivariate series, where the intervals between time steps are uneven, by grouping the uneven time steps into uniform bins. In contrast, VisionTS uses Heatmap to visualize a univariate series: it segments a length-T series into subsequences of one period, stacks them into a matrix, and replicates the channel 3 times to form a grayscale image for input to an LVM. In this paper, the name Heatmap refers specifically to images that use color to visualize the (normalized) values in a univariate or multivariate series without performing other transformations.

Spectrogram a visual representation of the spectrum of frequencies of a signal as it varies with time, extensively used for analyzing audio signals. Since audio signals are a type of univariate series, a spectrogram can be considered as a method for imaging one. A common format is a 2D heatmap image with the x-axis representing time steps and the y-axis representing frequency, a.k.a. a time-frequency space; each pixel in the image represents the (logarithmic) amplitude of a specific frequency at a specific time point. Typical methods for producing a spectrogram include Short-Time Fourier Transform (STFT), Wavelet Transform, and Filterbank. Compared to STFT, which uses a fixed window size, Wavelet Transform allows variable wavelet sizes — a larger size for more precise low frequency information.

Gramian Angular Field was introduced for classifying univariate series using CNNs, then extended to an imputation task, and also applied to financial time series forecasting. Given a univariate series, the first step is to rescale each value to within [0, 1] (or [−1, 1]). This range enables mapping it to polar coordinates by an arc cosine, with a radius encoding the time stamp. Two types of GAF, Gramian Sum Angular Field (GASF) and Gramian Difference Angular Field (GADF), exploit the pairwise temporal correlations in the series. The outcome is a T × T matrix, and a GAF image is a heatmap on it with both axes representing time.

Recurrence Plot encodes a univariate series into an image that captures its periodic patterns by using its reconstructed phase space. The phase space can be reconstructed by time delay embedding — a set of new vectors, where the time delay and the dimension of the phase space are both hyperparameters. With those vectors, an RP image measures their pairwise distances and applies the Heaviside step function to a threshold, generating a binary matrix whose entry is 1 if two vectors are sufficiently similar, producing a black-white image. An advantage of RP is its flexibility in image size by tuning the dimension and the delay. Some works omit the thresholding and use the distances themselves to produce continuously valued images to avoid information loss.

Other methods Markov Transition Field (MTF) is a matrix encoding transition probabilities among Q time segments, used to visualize a univariate series. ImagenTime stacks the delay embeddings into a matrix for visualizing a univariate series; MSCRED applies heatmaps to the correlation matrices of a d-variate series for anomaly detection; earlier work proposes Bitmaps to image discretized series and defines distances among them. Some methods use a mixture of imaging methods for richer representations, e.g., stacking GASF, GADF, and MTF into a 3-channel image, while FIRTS combines GASF, MTF, and RP. These multi-view representations have shown greater robustness than single-view images in these works for classification tasks.

How to model multivariate series Heatmap can be used to visualize the variate-time matrices of a multivariate series, where correlated variates should be spatially close to each other. Line Plot can be used to visualize one by plotting all variates in the same image or combining all univariate images to compose a bigger image, but these methods only work for a small number of variates. Spectrogram, GAF and RP were designed specifically for univariate series. For these methods and Line Plot, which are not straightforward in imaging multivariate series, the general approaches include using the channel independence assumption to model each variate individually, or stacking the images of d variates to form a d-channel image. However, the latter does not fit some vision models pre-trained on RGB images which require 3-channel inputs.

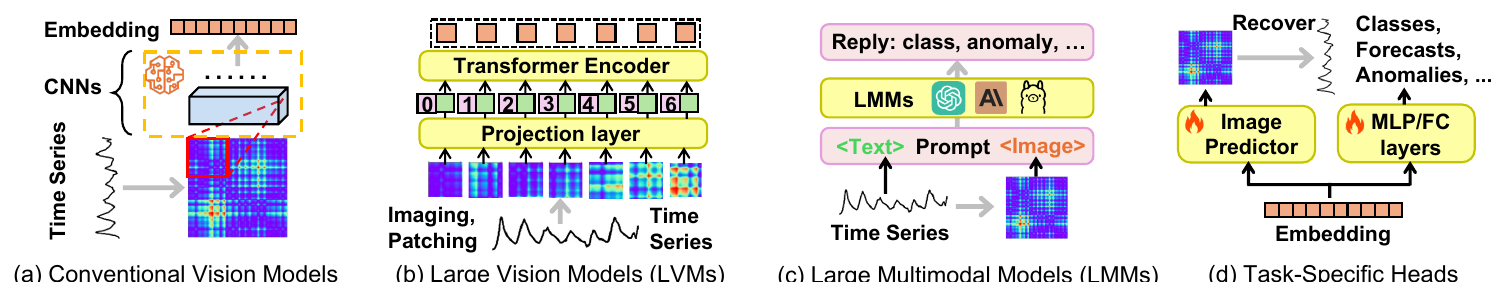

Conventional vision models Following traditional image classification, a K-NN classifier has been applied on the recurrence plots of time series, and an ensemble of fundamental classifiers such as SVM and AdaBoost on the Line Plots, for time series classification. As an image encoder, CNNs have been widely used for learning image representations; different from using 1D CNNs on sequences, 2D and 3D CNNs can be applied on imaged time series. More frequently, ResNet, Inception-v1 and VGG-Net have been used on Line Plots, Heatmap images, RP images, GAF images, and even a mixture of GAF, MTF and RP images. For time series generation tasks, GAN frameworks of CNNs and a diffusion model with U-Nets have also been explored. Due to their small to medium sizes, these models are often trained from scratch using task-specific training data; meanwhile, fine-tuning pre-trained vision models has already been found promising in cross-modal knowledge transfer for time series anomaly detection and forecasting.

Large Vision Models Vision Transformer (ViT) has inspired the development of modern LVMs such as Swin, BEiT and MAE. ViT splits an image into patches of fixed size, then embeds each patch and augments it with a positional embedding; the vectors of patches are processed by a Transformer as if they were token embeddings. Compared to CNNs, ViTs are less data-efficient, but have higher capacity, so pre-trained ViTs have been explored for modeling imaged time series. AST fine-tunes DeiT on the filterbank spectrogram of audios for classification tasks and finds ImageNet-pretrained DeiT is remarkably effective in knowledge transfer. VisionTS attributes LVMs' superiority over LLMs in knowledge transfer to the small gap between the pre-trained images and imaged time series; it finds that with one-epoch fine-tuning, MAE becomes the SOTA time series forecaster on some benchmark datasets. There are also initial efforts in pre-training ViT architectures with imaged time series: SSAST introduced a masked spectrogram patch prediction framework for pre-training ViT on a large dataset, AudioSet-2M, and ViTime generates a large set of Line Plots of synthetic univariate series for pre-training ViT, which was found superior over TimesFM in zero-shot forecasting tasks on benchmark datasets.

Large Multimodal Models As LMMs get growing attention, some notable LMMs such as LLaVA, Gemini, GPT-4o and Claude-3 have been explored to consolidate the power of LLMs and LVMs for time series analysis. Since LMMs support multimodal input via prompts, methods in this thread typically prompt LMMs with textual and imaged representations of time series, and instructions on what tasks to perform. InsightMiner is a pioneer work that uses the LLaVA architecture to generate texts describing the trend of each input univariate series; similarly, other work adopts the LLaVA architecture for multivariate classification, encoding a series by the visual embeddings of the stacked Line Plots of all variates while the matrix is also verbalized in a prompt as the textual modality. Moreover, zero-shot and in-context learning performance of several commercial LMMs have been evaluated for audio classification, anomaly detection, and some synthetic tasks, where the image and textual representations of a query time series are integrated into a prompt; for in-context learning, these methods inject the images of a few example time series and their labels into an instruction to prompt LMMs for assisting the prediction of the query time series.

Task-specific heads For classification tasks, most of the methods in the table below adopt a fully connected (FC) layer or multilayer perceptron (MLP) to transform an embedding into a probability distribution over all classes. For forecasting tasks, there are two approaches: using an MLP/FC layer to directly predict, from the embedding, the time series values in a future time window; or predicting the pixel values that represent the future part of the time series and then recovering the time series from the predicted image. Imputation and generation tasks resemble forecasting as they also predict time series values, so the second approach has been used for imputation and generation as well. When using LMMs for classification, text generation, and anomaly detection, most of the methods prompt LMMs to produce the desired outputs in textual answers, circumventing task-specific heads.

Time series normalization Vision models are usually trained on standardized images. To be aligned, the images introduced above should be normalized with a controlled mean and standard deviation, as has been done on spectrograms. In particular, as Heatmap is built on raw time series values, the commonly used Instance Normalization can be applied on the time series as suggested by VisionTS, since it shares similar merits as standardization. Using Line Plot requires a proper range of y-axis: in addition to rescaling time series, ViTST introduced several methods to remove extreme values from the plot. GAF requires min-max normalization on its input, as it transforms time series values within [0, 1] to polar coordinates. In contrast, input to RP is usually normalization-free as an ℓ2 norm is involved before thresholding.

Image alignment When using pre-trained models, it is imperative to fit the image size to the input requirement of the models. This is especially true for Transformer based models as they use a fixed number of positional embeddings to encode the spatial information of image patches. For 3-channel RGB images such as Line Plot, it is straightforward to meet a pre-defined size by adjusting the resolution when producing the image. For images built upon matrices such as Heatmap, Spectrogram, GAF and RP, the number of channels and matrix size need adjustment: for the channels, one method is to duplicate a matrix to 3 channels, another way is to average the weights of the 3-channel patch embedding layer into a 1-channel layer; for the image size, bilinear interpolation is a common method to resize input images, and an alternative is to resize the positional embeddings instead of the images to fit the model to a desired input size. However, the interpolation in these methods may either alter the time series or the spatial information in positional embeddings.

Time series recovery Tasks such as forecasting, imputation and generation require predicting time series values. For models that predict pixel values of images, post-processing involves recovering time series from the predicted images. Recovery from Line Plots is tricky: it requires locating pixels that represent time series and mapping them back to the original values, which can be done by manipulating a grid-like Line Plot that comes with a recovery function. In contrast, recovery from Heatmap is straightforward as it directly stores the predicted time series values. Spectrogram is underexplored in these tasks and it remains open on how to recover time series from it; the existing work uses Spectrogram for forecasting only with an MLP head that directly predicts time series. GAF supports accurate recovery by an inverse mapping from polar coordinates to normalized time series. However, RP lost time series information during thresholding, thus may not fit recovery-demanded tasks without using an ad-hoc prediction head.

Fundamental understanding With various imaging methods available, most existing works select them based on intuition. There remains a gap in both theoretical and empirical understanding of questions such as which imaging methods fit which tasks and whether LVMs truly learn patterns that make them better suited to time series than LLMs. Some existing works evaluate multiple imaging methods, but in limited tasks; for example ImagenTime compares the representation abilities of GAF, STFT and delay embedding in a time series generation task. However, a thorough understanding to guide the development of LVMs and LMMs across imaging methods is absent. This survey provides an initial comparative discussion, and further empirical and theoretical investigations are essential to the synergy between LVMs/LMMs and time series analysis.

Modeling the correlation of variates The existing methods for imaging multivariate series each come with limitations. Heatmaps encode spatial relationships, so the row order of variates affects how correlations are modeled, implying correlated variates should be spatially close to each other; similarly, Line Plots do not explicitly capture inter-variate correlations. Stacking one channel per variate into a d-channel input hinders the use of pre-trained LVMs, which expect 3-channel RGB inputs. Therefore, there is a need for more effective imaging or modeling techniques — e.g., incorporating graph neural networks on variates — to better capture correlations in multivariate series.

Advanced imaging for time series In addition to the basic methods introduced above, advanced image representations hold promise. For example, InsightMiner adopts seasonal-trend decomposition, which is often used to extract components that can serve as inductive biases for time series models; extending this idea to decompose images such as Spectrogram, GAF and RP into finer-grained components may enhance vision models' effectiveness. Moreover, combining multiple imaging methods from different views, such as frequency (Spectrogram), temporal structure (GAF), and recurrence patterns (RP), can provide richer representations. FIRTS stacks images across channels for a classification task, but is limited to images of the same size; modeling a mixture of arbitrary images by methods such as multi-view learning may enable more flexibility.

Multimodal time series models and agents As can be seen from the table above, the existing research on multimodal analysis (with vision modality) is much less than unimodal analysis, with a limited scope of time series tasks. Given the existing LLMs for time series such as Time-LLM and S²IP, it is appealing to introduce vision modality to further boost the performance in wide tasks such as forecasting, classification and anomaly detection. Furthermore, the visual representation of time series provides the foundation for exploring multimodal AI agents for more intricate and nuanced tasks that require reasoning and interactions with environments, such as root cause analysis in AI for IT Operations (AIOps).

Vision-based time series foundation models A foundation model is a deep learning model trained on vast datasets that is applicable to a wide range of tasks. Recent time series foundation models, such as TimesFM, MOMENT, Chronos and Time-MoE, are mostly built upon LLM architectures and trained on raw time series. Given the potential of image representation, it is promising to explore vision models as a new architecture to revolutionize time series foundation models. This research direction not only leverages the advantages of LVMs — e.g., the prior knowledge extracted from the vast pre-training images — but also enables future development of vision-language foundation models for time series.
